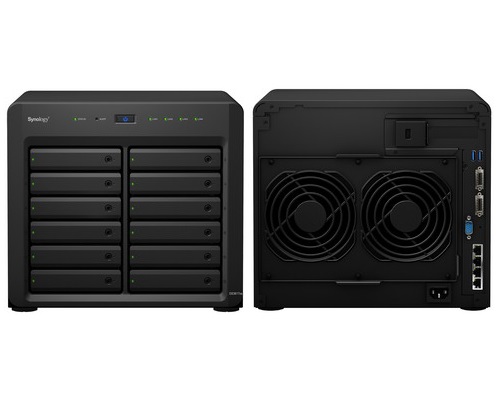

    Synology DiskStation DS3617xs 12-Bay NAS
    [DS3617xs]
    $4,000.00

    Synology DiskStation DS3617xs 12-Bay Premium performance NAS Server



    Overview

    Meet the 12-bay desktop NAS that allows instant deployment with scalability up to 36 drives, delivering outstanding 2,358MB/s sequential throughput reading. DS3617xs is certified for VMware, Citrix, Hyper-V, and OpenStack, ready to bring superior agility and efficiency to businesses.

    Equipped with an Intel Xeon-D quad-core processor, DS3617xs delivers stunning performance with over 2,358 MB/s reading under a RAID 5 configuration with optional 10GbE and Link Aggregation enabled. Initially equipped with 16GB DDR4 ECC RAM (upgradable to 48GB), it ensures data accuracy when handling high-value data and mission-critical tasks.

    DS3617xs can be connected to one or two dedicated DX1215 expansion units, allowing you to expand storage capacity to up to 36 drives without disrupting service. The high-bandwidth cable ensures instant and lossless connections between the main server and the expansion units.

    Hardware Specification : Synology DiskStation DS3617xs 12-Bay NAS
    • CPU : Intel Xeon D-1527 (64-bit) Quad Core 2.2 (base) / 2.7 (turbo) GHz
    • Memory : 16 GB (8 GB x 2) DDR4 ECC SO-DIMM / Expandable up to 48 GB (16 GB + 16 GB x 2)
    • Drive Bay(s) : 12 (Hard drive not included)
    • Maximum Drive Bays with Expansion Unit : 36 (with DX1215 expansion unit)
    • Compatible Drive Type :
      • 3.5" SATA III / SATA II HDD
      • 2.5" SATA III / SATA II HDD
      • 2.5" SATA III / SATA II SSD
    • Max Capacity : 120 TB (10 TB HDD X 12)
    • Max Capacity with Expansion Unit : 360 TB (10 TB HDD X 36)
    • External Interface : USB 3.0 Port X2, Expansion Port X2
    • LAN : 4 RJ-45 1GbE LAN Ports (with Link Aggregation / Failover support)
    • PCIe Slot for Network Card : 1 x Gen3 x8 slot (x8 link)
    • Size : 270 mm X 300 mm X 340 mm
    • Weight : 9.8 kg


    Storage Management
    • Maximum Single Volume Size : 108 TB / 200 TB (32GB RAM required, for RAID 5 or RAID 6 groups only)
    • Maximum Internal Volume Number : 1024
    • Maximum iSCSI Target Number : 64
    • Maximum iSCSI LUN : 512
    • Supported RAID Type : Synology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 and Global Hot Spare Supported.
    File Sharing Capacity
    • Maximum User Accounts : 16000
    • Maximum Groups : 512
    • Maximum Shared Folder : 512
    • Maximum Shared Folder Sync Tasks : 16
    • Maximum Concurrent CIFS/AFP/FTP Connections : 2048
    Virtualization
    • VMware vSphere 6 with VAAI
    • Windows Server 2012
    • Windows Server 2012 R2
    • Citrix Ready
    • OpenStack
    Warranty : 5 years

    Hard drive not included

    Synology DiskStation DS3617xs

    Synology DiskStation DS3617xs 12-Bay NAS

    For more information, please visit this products webpage.
    This product was added to our catalog on Sunday 11 December, 2016.
