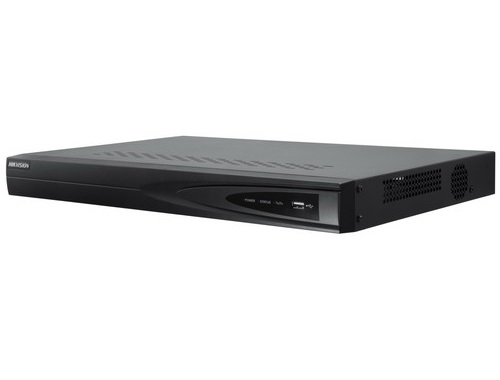

Hikvision DS-7608NI-E2/8P Embedded NVR
เครื่องบันทึกภาพจากกล้องวงจรปิดแบบ IP Camera ผ่านระบบเครือข่ายภายใน NVR (Network Video Recorder) บันทึกภาพเหตุการณ์จากกล้องวงจรปิดได้สูงสุดถึง 8 กล้อง รองรับแบนด์วิธขาเข้า 80Mbps และ แบนด์วิธขาออก 80Mbps ติดตั้งฮาร์ดดิสก์ภายในได้สูงสุดจำนวน 2 ลูก มาพร้อมพอร์ต Power Over Ethernet (PoE) จำนวน 8 ช่องสัญญาณ
Product Specification : Hikvision NVR DS-7608NI-E2/8P
Video/Audio Input :
- IP video input : 8-Channels
- Two-way audio input : 1-Channel, RCA (2.0 Vp-p, 1kΩ)
Network :
- Incoming bandwidth : 80Mbps
- Outgoing bandwidth : 80Mbps
- Remote connection : 128
Video/Audio Output :
- HDMI/VGA output : 1-Channel, resolution: 1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
- Recording Resolution : 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Frame Rate :
- Main stream : 50 fps (P) / 60 fps (N)
- Sub-stream : 50 fps (P) / 60 fps (N)
- Audio Output : 1-Channel , RCA (Linear, 1kΩ)
- Synchronous Playback : 8-Channels
Decoding :
- Live view / Playback : 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Capability : 5-Channel@1080P
Hard Disk :
- SATA : 2 SATA interfaces for 2 HDDs
- Capacity : Up to 6TB capacity for each HDD
External Interface :
- Network Interface : 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
- USB Interface :
- Front panel : 1 × USB 2.0
- Rear panel : 1 × USB 3.0
- Alarm In : 4-Channels
- Alarm Out : 1-Channels
POE :
- Interface : 8 independent 100 Mbps PoE network interfaces
- Max. Power : 120W
- Supported Standard : AF and AT
Warranty : 3 years
ราคารวมภาษีมูลค่าเพิ่ม 7% แล้ว

Hikvision NVR DS-7608NI-E2/8P
|
